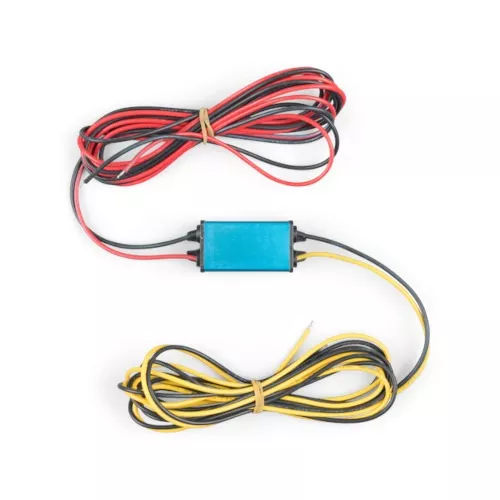

Victron Energy Orion IP67 DC-DC Converters are built to handle the toughest conditions with full waterproof, shockproof, and ignition-protected designs. These converters are ideal for marine, off-road, and industrial environments where reliable power conversion is needed from 24V to 12V or 12V to 24V.
Models Included:
- Orion IP67 24/12-5 (60W)
- Orion IP67 24/12-10 (120W)
- Orion IP67 24/12-20 (240W)
- Orion IP67 24/12-100 (1200W)
- Orion IP67 12/24-50 (1200W)
Main Features:
- Encapsulated electronics in resin: Waterproof (IP67), oil-proof, dirt-proof
- Shockproof and ignition protected
- Wide input voltage range up to 40V for stability under load surges
- Built-in overload and short circuit protection
- High efficiency up to 96%
- Long 1.8m input/output cables – minimizes the need for extension cables
Technical Specifications Overview:
| Model | Type | Output Current | Power | Efficiency | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| Orion IP67 24/12-5 | 24V to 12V | 5 A | 60 W | 93% | 25 × 43 × 20 | 0.05 kg |
| Orion IP67 24/12-10 | 24V to 12V | 10 A | 120 W | 93% | 74 × 74 × 32 | 0.3 kg |
| Orion IP67 24/12-20 | 24V to 12V | 20 A | 240 W | 95% | 74 × 74 × 32 | 0.3 kg |
| Orion IP67 24/12-100 | 24V to 12V | 100 A | 1200 W | 96% | 265 × 127 × 63 | 2.15 kg |
| Orion IP67 12/24-50 | 12V to 24V | 50 A | 1200 W | 96% | 265 × 127 × 63 | 2.15 kg |
Protection and Certifications:
- Reverse polarity protection: with external fuse or circuit breaker
- Short-circuit proof and overload protection (hiccup mode)
- Operating temperature: -40°C to +70°C (derates 3% per °C above 40°C)
- Safety: EN 60950
- EMC Standards: EN 55014, EN 61000, IEC 68-2-6 vibration resistance
Brand: Victron Energy
Warranty: 5 years
