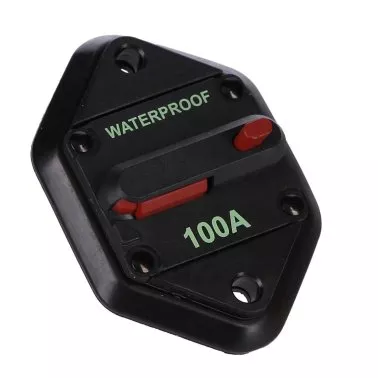

Panel-Mounting Circuit Breaker 100A
The Panel-Mounting Circuit Breaker is essential for protecting your winch or high-power electrical devices from potential overvoltage. This robust breaker ensures safety and reliability in demanding conditions.
- Current Rating: 100A
- Maximum Voltage: 42V
- Body Material: Bakelite
- Dimensions: Height 74mm x Width 48mm
- Sealing Rating: IP67
- Terminals (+) and (-): Ø6.2mm for eye lugs Ø8/10mm
- Screws, Nuts, Washers: Chrome-plated brass
- Screw Length: 12mm
- Mounting Holes: Ø6mm x Depth 8mm
- Recess Size: 48 x 39mm
- Connection: Place the circuit breaker close to the battery
Brand: Euromarine
VDM – Reya SKU: 662058
EAN CODE: 3425996620587
