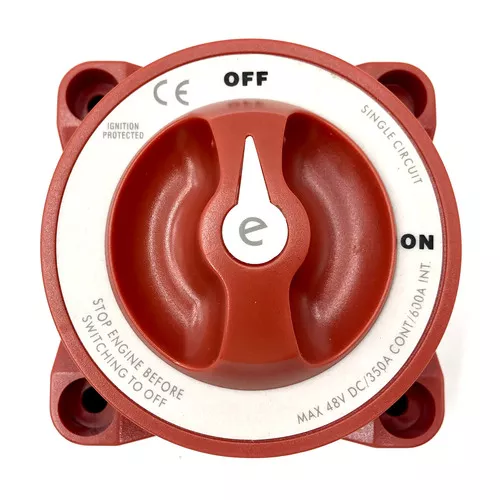

Trem L0609003 – Battery Switch Maxi 350A
The Trem L0609003 is a high-performance battery switch designed to effectively manage power for your applications. This switch is built to handle demanding tasks while ensuring safety and reliability. It is ideal for both marine and automotive uses.
Battery switch Maxi 350A features:
- Constructed from reinforced polycarbonate for durability
- Flexible installation with surface, rear, or front panel mounting options
- Designed to switch a single battery to a single load group
- Terminal studs made from tin-plated copper for excellent conductivity
Specifications:
- Continuous Power: 350A
- Intermittent Power (5 min): 600A
- Power Rating (10 sec): 2000A
- Voltage: 48V
- Number of Poles: 1
- Terminal Size: M10
- Cut-out Hole Dimensions: 92.08 mm
- Overall Dimensions: 97.79 x 97.79 x 78.67 mm
- Weight: 0.590 kg
EAN: 8024827758441
