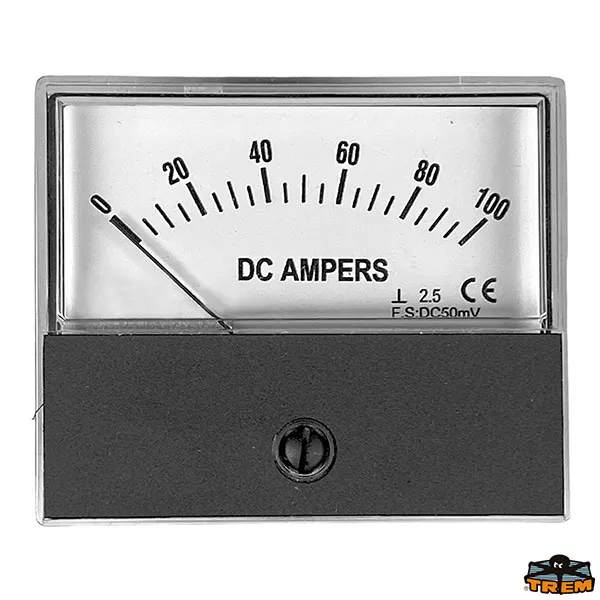

Trem K3608017 – DC Analog Ammeter DC 0-100A
The Trem K3608017 is a reliable and efficient DC analog ammeter designed to measure current within the range of 0-100A. This device simplifies installation with a straightforward two-wire connection to an external shunt, allowing for easy integration into your existing systems. Its versatile mounting options enable it to be installed behind a panel or externally, providing flexibility for various applications.
Model: 8017
Dimensions: 71.1 x 60.3 mm
Mounting: External 51 mm, Rear panel 66.6 x 32 mm
Needle increment reading: 4A
DC Scale: 0-100A
External shunt: 100A/50mV
Internal shunt: Not applicable
Weight: 0.27 Kg
EAN: 8024827625118
