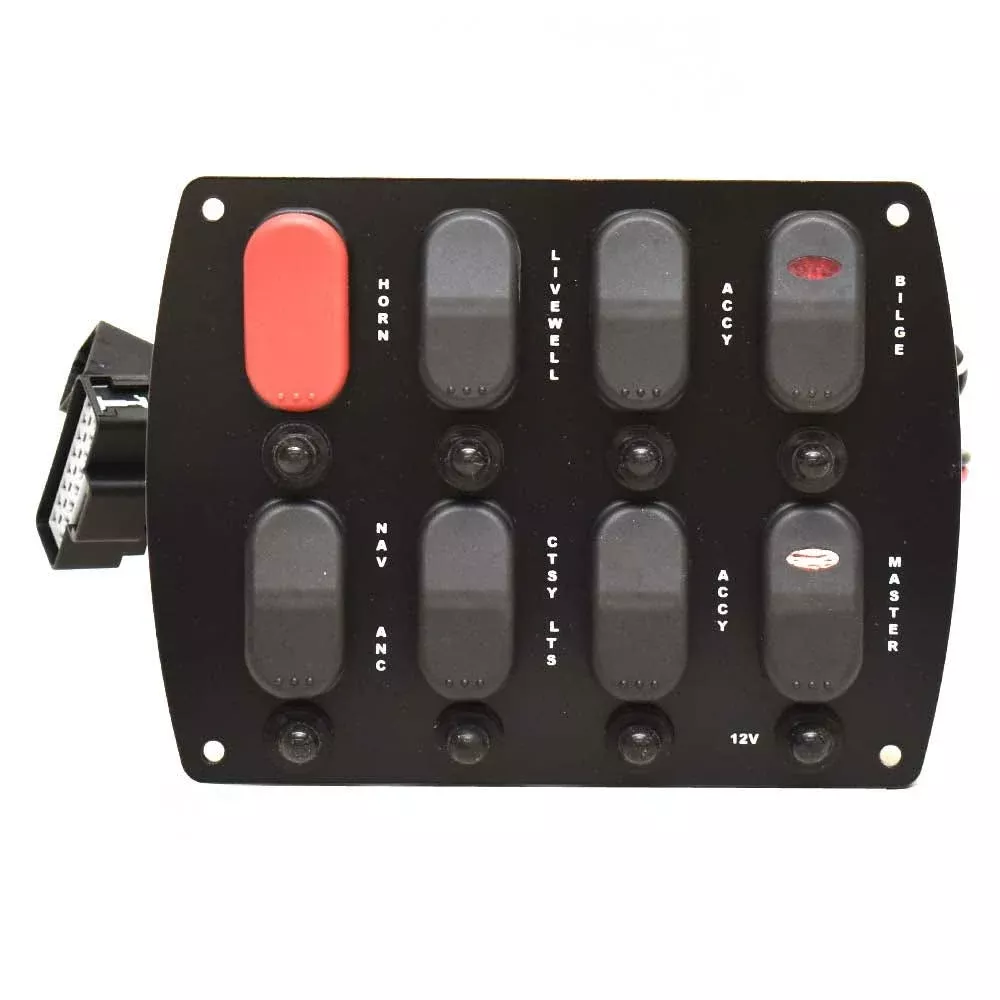

Boat part number 1109500 is a new dash switch panel for Tracker Boats, part number 185871 , but may be used on other boats. Manufacturer unavailable, part number AD-352-004 .This panel is constructed out of matte black marine grade plastic and measures approximately 7 1/2″ L x 5 5/8″ H overall. Requires an approximate 5 1/2″ L x 4 3/4″ H cutout. Mounts using (4) 1/4″ Dia. mounting holes set apart 6 1/4″ x 5″. Connects using (2) 2 pin female connectors and (1) 16 pin female connector.Panel Features the Following:
- (1) “HORN” Rocker Switch | Momentary On/Off Red
- (1) “LIVEWELL” Rocker Switch | On/Off
- (2) “ACCY” Rocker Switches | On/Off
- (1) “BILGE” Rocker Switch | On/Off W/ Red Illumination Window
- (1) “NAV ANC” Rocker Switch | On/Off/On
- (1) “CTSY LTS” Rocker Switch | On/Off
- (1) “MASTER” Rocker Switch | On/Off W/ Red Illumination Window
- (1) 3 Amp Push-To-Reset Breaker
- (5) 5 Amp Push-To-Reset Breakers
- (1) 7 Amp Push-To-Reset Breaker
- (1) 10 Amp Push-To-Reset Breaker
Specifications:
- Boat Manufacturer: Tracker Boats
- Part Number: 185871
- Manufacturer Part Number: AD-352-004
- Material: Marine Grade Plastic
- Color: Black
- Finish: Matte
- Overall Dimensions: 7 1/2″ L x 5 5/8″ H
- Cutout: 5 1/2″ L x 4 3/4″ H
- Mounts: (4) 1/4″ Dia. Holes Set Apart 6 1/4″ x 5″
- Connections: (2) 2 Pin Female / (1) 16 Pin Female
