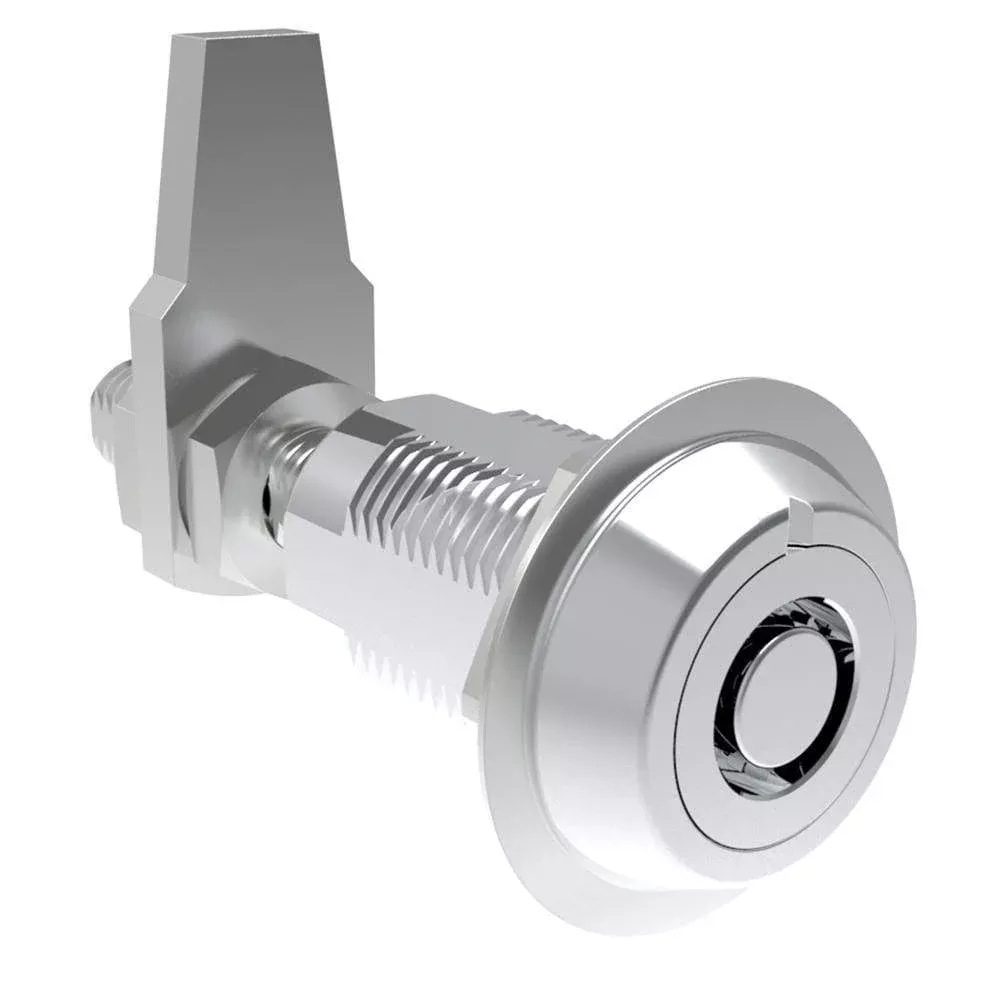

Southco E3-15-30 Door Latches & Hinges
Compression Latch Large Vise Action Stainless Steel Passivated Silver
Specifications:
- Material: Stainless Steel
- Finish: Passivated
- Color/Appearance: Silver
- Access Restriciton: Key Locking
- Access Restriction: Tool
- Grip Type: Adjustable
- Mounting Style: Single Hole Mount
- Max. Outer Panel Thickness: 18.000 mm (0.71″)
- Min. Outer Panel Thickness: 1.000 mm (0.04″)
- Head Style: Southco Tubular Key
- Cam Attached: No
- Rotation: Type A – Turn Clockwise to Latch
- Size Series: 19.1 mm
- Compliance Specification: UL FTTA2/FTTA8 Type 1
- Grip – Maximum: 59.600 mm (2.35″)
- Grip – Minimum: 43.900 mm (1.73″)
Normalized SKU: E31530
UPC Code: 817382012763
