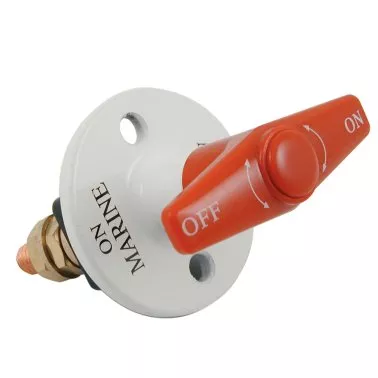

Single-pole Battery Switch With Handle 300a Red
This battery switch is designed for robust performance in various applications, providing reliable power control.
- Voltage: 12 volts to 48 volts DC
- Continuous Capacity: 300 Amp
- Instantaneous Capacity: 1000 Amp for 10 seconds
- Extra Long Terminals: 2 copper bolts Ø 9.8 mm x length 25 mm
- Protection Class: IP 66
- Compliance: NF EN 28846 (ISO 8846)
- Assembly Dimensions:
- Base diameter: 68 mm
- Handle diameter: 80 mm
- Length: 100 mm
- Fixing holes: Ø 8 mm
- Drilling Centre Distance: 45 mm
- Built-in Dimensions: Hole Ø 23 mm, Max Partition Thickness: 18 mm
- Available Dimensions: 47 mm behind bulkhead
VDM – Reya SKU: P204675
