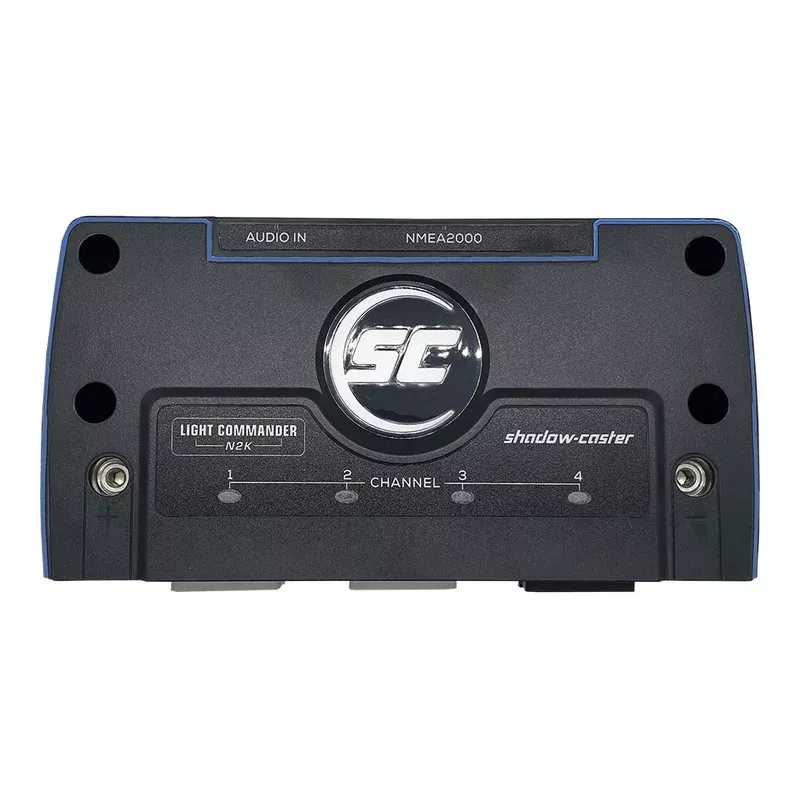

ShadowCaster Light Commander NMEA 2000 WiFiBluetooth Network fSimrad Only SCMLCN2K

x Light Commander NMEA 2000 6-Zone Lighting Controller (NMEA 2000 Only – No MFD Network or Wi-Fi/Bluetooth ConnectivityDiscover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes—from color change, fade, rotation, and strobe to music sync effects—offering versatility and customization to illuminate a boat like never before.Encased in a durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for. Elevate the marine lighting experience with the Light Commander NMEA 2000—where technology meets functionality and style.**Please note that SCM-LC-N2K is a multi-zone lighting controller for NMEA 2000 only connectivity. The is NOT compatible with Garmin, Simrad, Lowrance, B & G, Raymarine, and Furuno MFDsKey Features:

• NMEA 2000 Backbone
• Global control for all lighting
• Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
• 6 “Instant ON” switch inputs for enabling lights without MFD control
• Supports RGB and RGBW lighting

Additional Features:

• IP67 Water resistant housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEM installations
• “Digitally fused” over current protection circuits, 15amps/channel (X4)
• Backlit logo and zone indicator LEDs to indicate functions and operation
• Built in 3.5mm female audio port and microphone for music sync input

INTERFACING TO THE LIGHT COMMANDERNMEA 2000With the release of industry-standardized NMEA 2000 lighting control protocols, plug-and-play lighting controller compatibility is here. Simply connect to the NMEA 2000 backbone with the SCM-LC-N2K.SCM-ZC-Remote ControlUse the SHADOW-CASTER® backlit Zone Controller keypad (SCM-ZC-REMOTE) with any Light Commander model to instantly control 4 zones of lighting through a backlit keypad.Specifications:

• IP67-rated enclosure
• Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
• 15 amps per RGB(W) zone, 60 amps max
• 10 to 30V input range
• Direct 3.5mm female audio input for music synchronization
• Music sync created by onboard DSP (Digital Signal Processing)
• Shadow-NET® bus allows system expandability
• Digital power protection set at 15amps/channel
• Built in switch inputs for instant on lighting for each zone
• 24-bit color support and gamma correction for universal color support
• Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)

Quick Guide (pdf)
