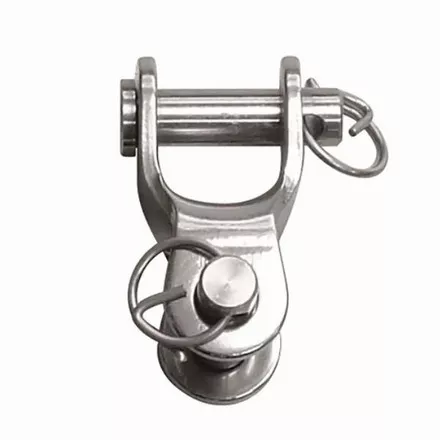

Grade 15-5PH investment cast stainless steel body and hasp. Grade 316 stainless steel plunger pin and spring. RF68 grade 316 stainless steel
| A (mm) | 6.0 |
|---|---|
| B (mm) | 6.7 |
| C (mm) | 12.2 |
| D (mm) | 7.0 |
| Weight (g) | 21 |
|---|---|
| P.L. B.L. (kg) | 1000 |
| U.D.L. B.L. (kg) | 1200 |
| Shackle Pin Product No. | – |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |
| Part Number |
|---|
| RON-RF816 |
