Ronstan Series 32 I-Track

Ronstan Series 32 I-Track – Multiple Lengths Available

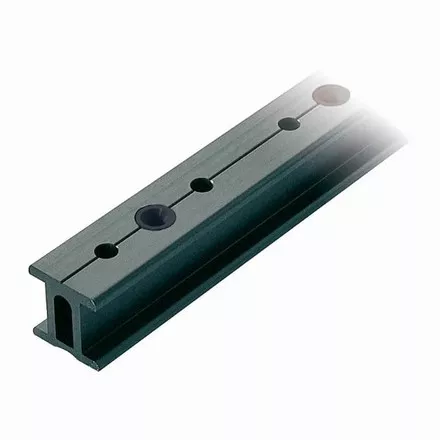

Grade AL6061-T6 aluminium alloy I-beam track, black. Supplied with nylon track bolt insulators.

Specifications

• Aluminium alloy
• Track fastenings: to suit 6mm (1/4″) countersunk fasteners at 100mm (3 15/16″) centres
• Stop holes: 50mm (2″) centres; track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
• Minimum curve radius:
  • For 76mm (3″) car: Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = 500mm (20″)
    For 157mm (6 3/16″) car: Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = not suitable
• For standard length track rails, as delivered from the manufacturer, the centre of the last mounting hole at each end of the track rail is located at 48mm (1 29/32”) from the end, and the distance between fasteners across a track join will be 96mm (3 25/32”). The distance between the two fasteners at the end of each track rail, whether across a join or at an end, must never exceed 100mm (3 15/16”)

• Download more information about ordering curved track
