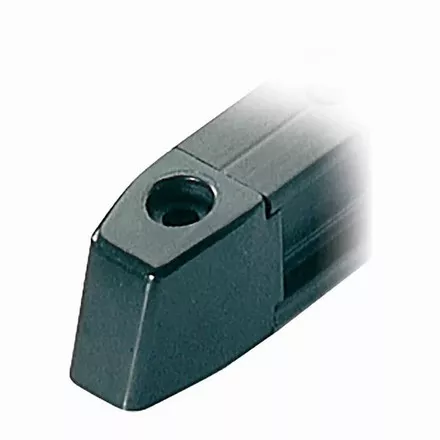

Ronstan Series 32 I-Track End Cap
Series 32 track end cap.
Specifications
- Suits 1 x 5mm (3/16″) screw
- Made from impact resistant, UV stabilised nylon
- Track fastenings: to suit 6mm (1/4″) countersunk fasteners at 100mm (3 15/16″) centres
- Stop holes: 50mm (2″) centres
- Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
- Minimum curve radisus:
- For 76mm (3″) car. Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = 500mm (20″)
- For 157mm (6 3/16″) car. Min horizontal ‘A’ curve radius = 500mm (20″); Min horizontal ‘B’ curve radius = not suitable
| Part Number | Weight |
|---|---|
| RON-RC63280 | 10g |
