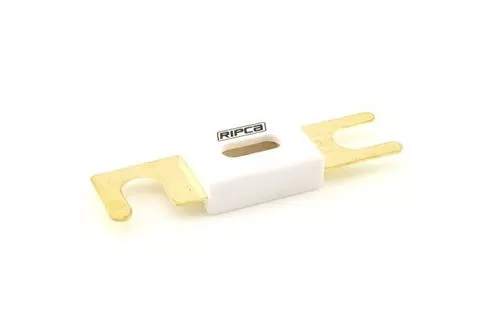

Ripca Fuse ANL 200A
The Ripca ANL 200A fuse is a ceramic and copper fuse for DC (VDC) systems. This ANL fuse protects electrical installations against overcurrent. The bolt distance center to center is 60 mm.
Main Features
- Current: 200A
- Type Voltage: VDC
- Voltage: 12 / 24 / 36 / 48 / 72 / 125 V
- Material: Ceramics and Copper
- Color: White
- Bolt Distance H.o.H.: 60 mm
- Sales Unit: 1 piece
Technical Data
| Length | 82 mm |
| Width | 22 mm |
| Current | 200 A |
| Voltage | 12 / 24 / 36 / 48 / 72 / 125 V |
| Type Voltage | VDC |
| Bolt Distance H.o.H. | 60 mm |
| Material | Ceramics / Copper |
| Color | White |
| Sales Unit | 1 |
Brand: Ripca (Article code: ANL200) (Barcode: 8712734174859)
