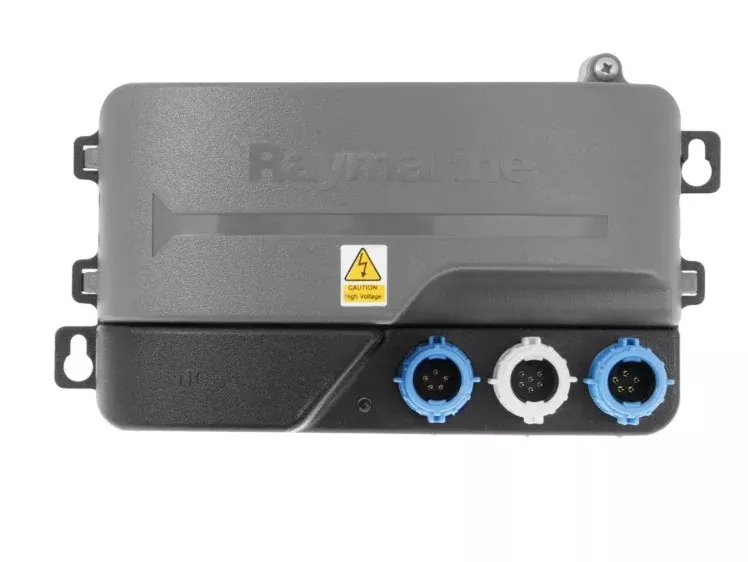

Raymarine iTC-5 Transducer Converter
The iTC-5 converts analogue transducer signals into SeaTalkng data. It combines speed/temperature, depth, wind, compass and rudder angle connections in one unit. It replaces the need for a separate converter pod for each sensor type.
Compatibility and installation
- Full calibration: i70 instrument.
- ST70 And ST70+: calibrate depth, wind and speed/temperature. They do not calibrate compass or rudder.
- i40, i50, i60 And ST60+: cannot calibrate the iTC-5.
- Network: integrate the unit into the SeaTalkng backbone.
- Location: install in a protected position; the enclosure is rated IPX2.
Technical specifications
| Power | Nominal 12 VDC; 9–16 V |
|---|---|
| Typical consumption | 1.5 W |
| Maximum current | Less than 150 mA |
| Network load | Len 3 |
| Inputs | 5 groups of transducer terminals |
| Included | iTC-5, 2 screws and 400 mm spur cable |
