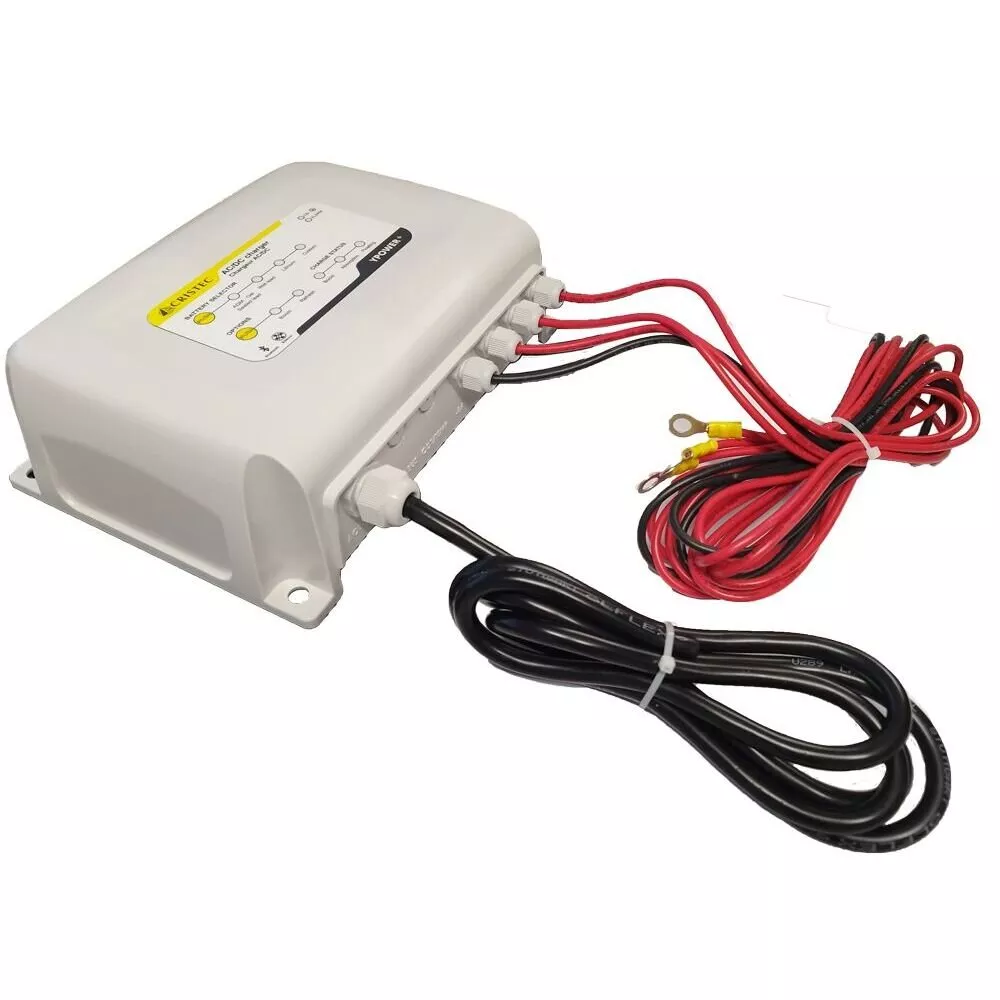

Plastimo P206548 – Galvanic Isolator ISO+ 16A
The Cristec ISO+ 16A galvanic isolator is designed to effectively prevent galvanic corrosion on boats connected to shore power. Installed between the dock shore supply and the boat’s main shore connection, it blocks low-voltage galvanic currents while maintaining full safety.
Protection And Performance
This isolator supports natural heat dissipation and reliable operation in demanding marine environments. It withstands high peak currents and continues to perform efficiently at temperatures up to +65 °C.
Technical Data
| Protection Rating | IP65 |
| Maximum Current | 16 A |
| Instantaneous Power | 800 A |
| Peak Current | 1600 A |
| Temperature Range | -25 °C to +65 °C |
| Length | 135 mm |
| Width | 150 mm |
| Height | 70 mm |
| Depth | 150 mm |
| Weight | 0.7 kg |
Brand: Cristec
Barcode: 03700505104605
