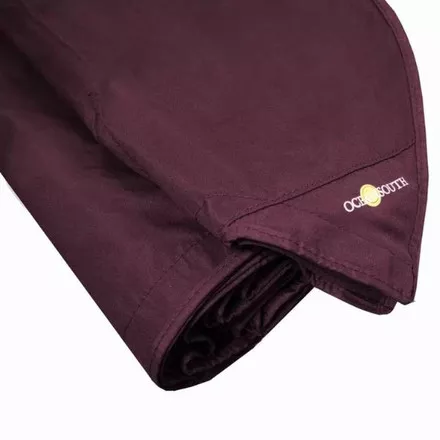

Oceansouth 4 Bow Bimini Top Replacement Fabric – Maroon
This is a fabric replacement for your Oceansouth Aluminium or Stainless 4 Bow Bimini. The ultimate fabric that combines strength, abrasion resistance, and dimensional stability.
Years of research have proven that dope-dyed polyester with maximum UV Inhibitors as developed by Oceansouth is the strongest and superior product for outdoor use.
Specifications
- Weight: 310g/m²
- Material: 100% High Tech Polyester
- Water Column: ≥ 150 mbar (1500 mm)
- Tensile Strength: ≈ 2200 N¹ | 1400 N²
- Elongation: ≈ 40 %¹ | 30 %²
- Coating: Polyurethan [PU]
- UV Protection Factor: UPF 50+ (measured> UPF 80)
| Part Number | Canopy Width | Mounting Width | Suits Bimini |
|---|---|---|---|
| OCS-F063-1M | 1.4m | 1.5m – 1.7m | OCS-MA063-1M |
| OCS-F063-2M | 1.6m | 1.7m – 1.9m | OCS-MA063-2M |
| OCS-F063-3M | 1.8m | 1.9m – 2.1m | OCS-MA063-3M |
| OCS-F063-4M | 2.0m | 2.1m – 2.3m | OCS-MA063-4M |
