Combine satellite distress alerting, AIS localisation, 121.5 MHz homing and Return Link Service in one emergency beacon.

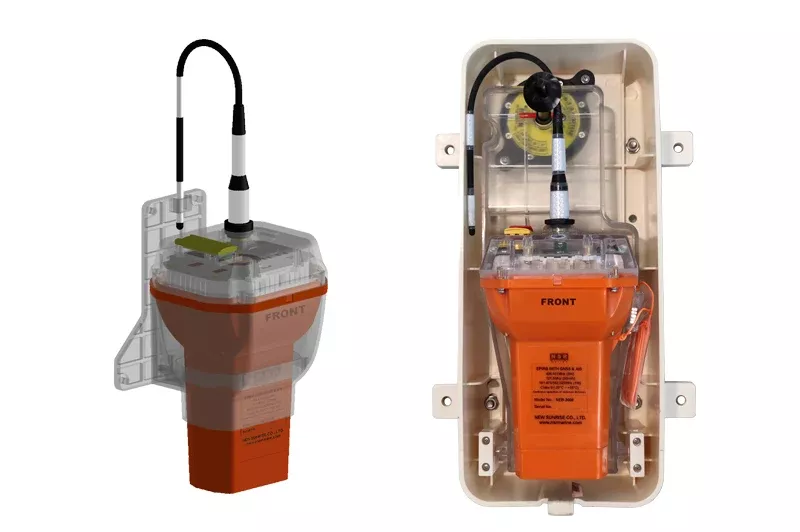

The NSR NEB-3000 is a new-generation AIS EPIRB with integrated multi-constellation GNSS and RLS capability. It is offered for manual-bracket or float-free installation and supports automatic hydrostatic deployment.
Key benefits
- Return Link Service: RLS capability can confirm that the distress alert has been detected by the satellite system.
- Layered localisation: Combines 406 MHz alerting, AIS position transmission, GNSS and a 121.5 MHz homing signal.
- Float-free option: An automatic enclosure can release the beacon at a maximum depth of 4 m.
Compatibility and installation
Confirm the selected manual or float-free configuration, beacon coding, registration and applicable carriage approval before installation. Battery, hydrostatic release and inspection intervals must follow official NSR instructions.
Technical specifications
| Model | NEB-3000 |
|---|---|
| 406 MHz transmitter | 406.031 MHz ±1 kHz; 5 W |
| AIS transmitter | 161.975 / 162.025 MHz; 1 W |
| 121.5 MHz homer | 50 mW |
| Return Link Service | Enabled |
| GNSS | GPS, BDS, GLONASS and Galileo |
| Operating time | At least 48 h at -20 °C |
| Battery | NBT400C; storage up to 10 years |
| Strobe | White LED; 20 flashes/min |
| Watertightness | 10 m for at least 5 min |
| Automatic release depth | Maximum 4 m |
| Operating temperature | -20 to +55 °C |
| Dimensions | 116.2 × 491.0 × 102.4 mm (beacon); 220.0 × 363.4 × 140.8 mm (container) |
| Weight | 730 g beacon; 1.4 kg container |
| Manual bracket | 123.0 × 133.3 × 118.4 mm; 160 g |
| Operating life | At least 48 hours at -20 °C |
| Transmitters | 406.031 MHz, AIS 1/AIS 2 and 121.5 MHz |
