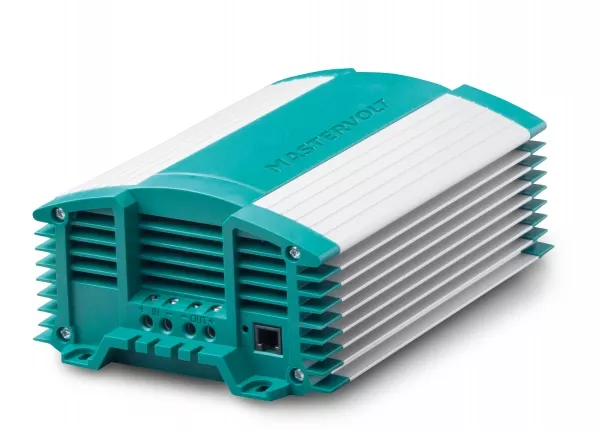

Magic 12/24-10
The Magic 12/24-10 offers reliable power management with multiple output options to suit different battery configurations.
- General Specifications:
- Output voltage: 20-28.5 V
- Nominal output voltage (adjustable with MasterAdjust): 27.2 V
- Output voltage dimmer (adjustable with MasterAdjust): 8-26 V
- Output voltage stabilization: 2 % at extremes of temperatures, load, and input
- Max. output power: 300 W
- Max. output current: 10 A
- Output charge current (3-step mode): 8 A
- Nominal input voltage: 12 V
- Input voltage range: 11-16 V
- Galvanic isolation: Yes
- Efficiency:>90 % (nominal input voltage, full load); peak 92
- Parallel configuration: Yes
- Alarm contact: Yes, through MasterBus
- Dimensions (hxwxd): 227 x 154 x 81 mm (8.9 x 6.1 x 3.2 inch)
- Weight: 1.8 kg (4.0 lb)
- Compliance: CE
Brand: Mastervolt
VDM – Reya SKU: MSTV81300300
