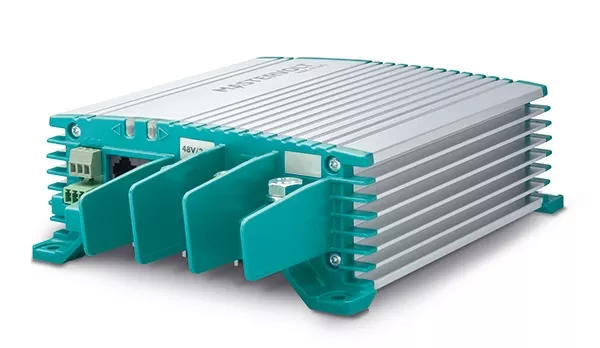

Mac Plus 48/24-30
This battery charger offers robust features for efficient energy management and reliable performance.
- Battery voltage sensing: Yes
- Status indicator: Yes, featuring a three-color double LED
- Communication protocols: MasterBus, CZone & NMEA 2000
- Output voltage range: 20-30 V DC
- Nominal output voltage: 24 V
- Output voltage stabilization: 2% across temperature extremes, load, and input
- Maximum output power: 900 W
- Maximum output current: 15 A
- Nominal input voltage: 36/48 V DC
- Input voltage range: 32-64 V
- Maximum input current: 50 A
- Efficiency:> 95% at nominal input voltage and full load; 97% peak
- Parallel configuration: Yes, up to 4 units
- Alarm contact: Yes, via MasterBus, CZone, DIP Switch, or remote switch
- Engine run signal input: Yes (active high/active low)
- DIP switches: Yes, for basic setup
- Dimensions: 255x165x66 mm (10.0 x 6.5 x 2.6 inches)
- Weight: 2 kg (4.4 lb)
- Brand: Mastervolt
VDM – Reya SKU: MSTV81203305
