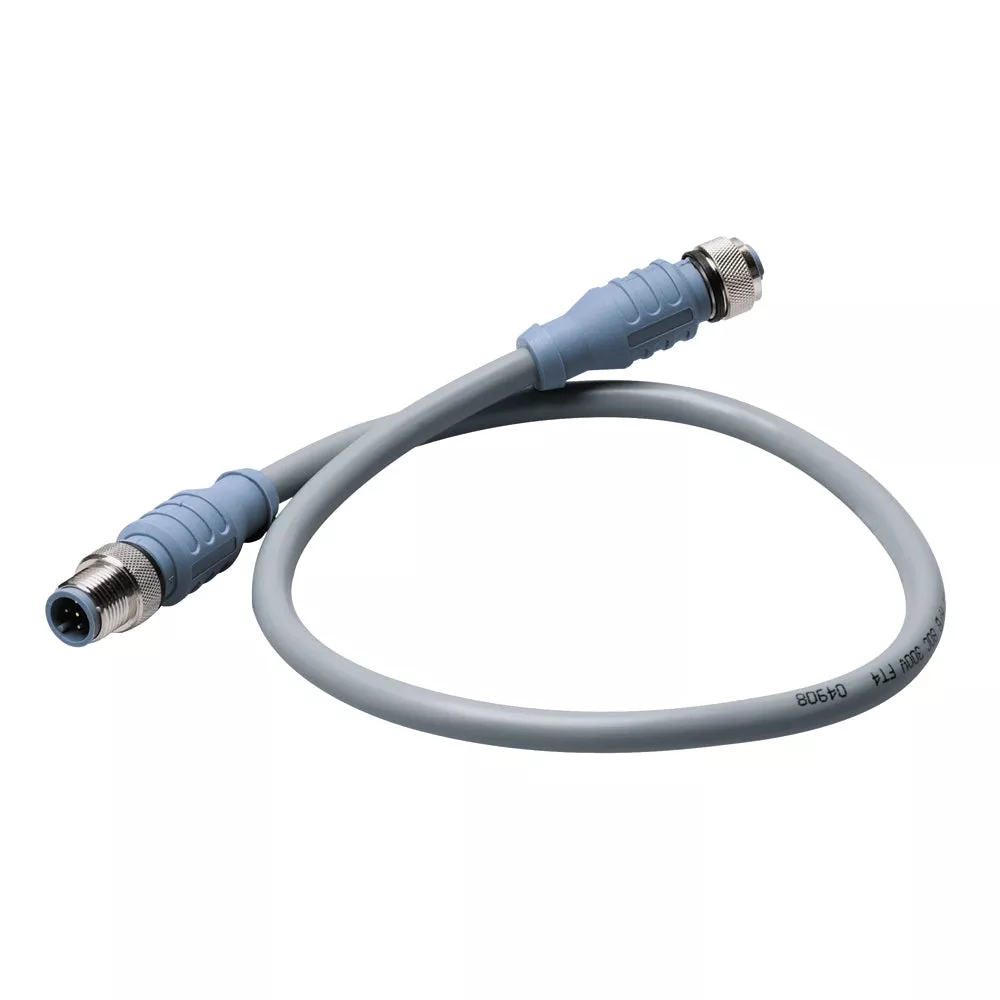

Maretron Micro Double-Ended Cordset – 8M [CM-CG1-CF-08.0]

Original price was: $56.79.Current price is: $29.78.

Sale!
SKU: CM-CG1-CF-08.0-MAR Category:
Share

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 8m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 2″H x 9″W x 9″L WT: 1.2 lbs
    • UPC: 873804001586
