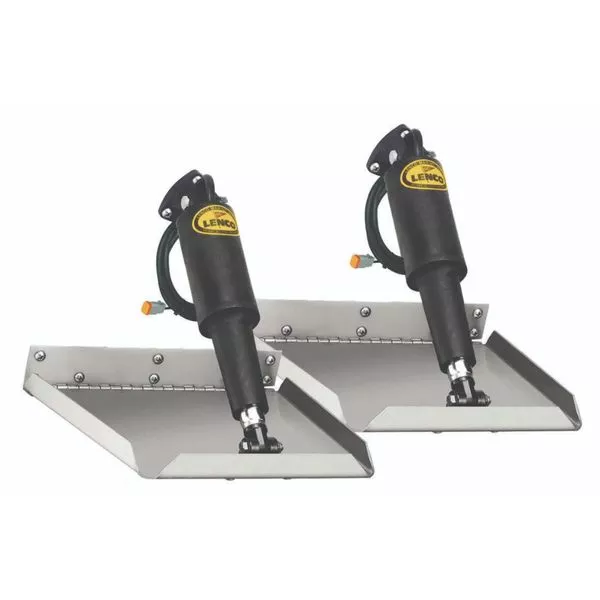

Lenco 12″ x 18″ Edge Mount Trim Tab Kit

Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 1/2″ (1.3cm) lower mounting height on 9″ (22.9cm) long blades & 3″ (7.6cm) lower mounting height on 12″ (30.5cm) long blades. All edges are turned up for added strength and style. Boat lengths 26′ (7.9m) to 36′ (11m).

Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with 1″ (2.5cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8″ (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

* Available in electro-polish finish. Contact Aquafax Sales for info.

L x W: 12″ x 18″

Hinge Height: 2″ (5.1cm)

Min Transom Height: 11″ (27.9cm)
