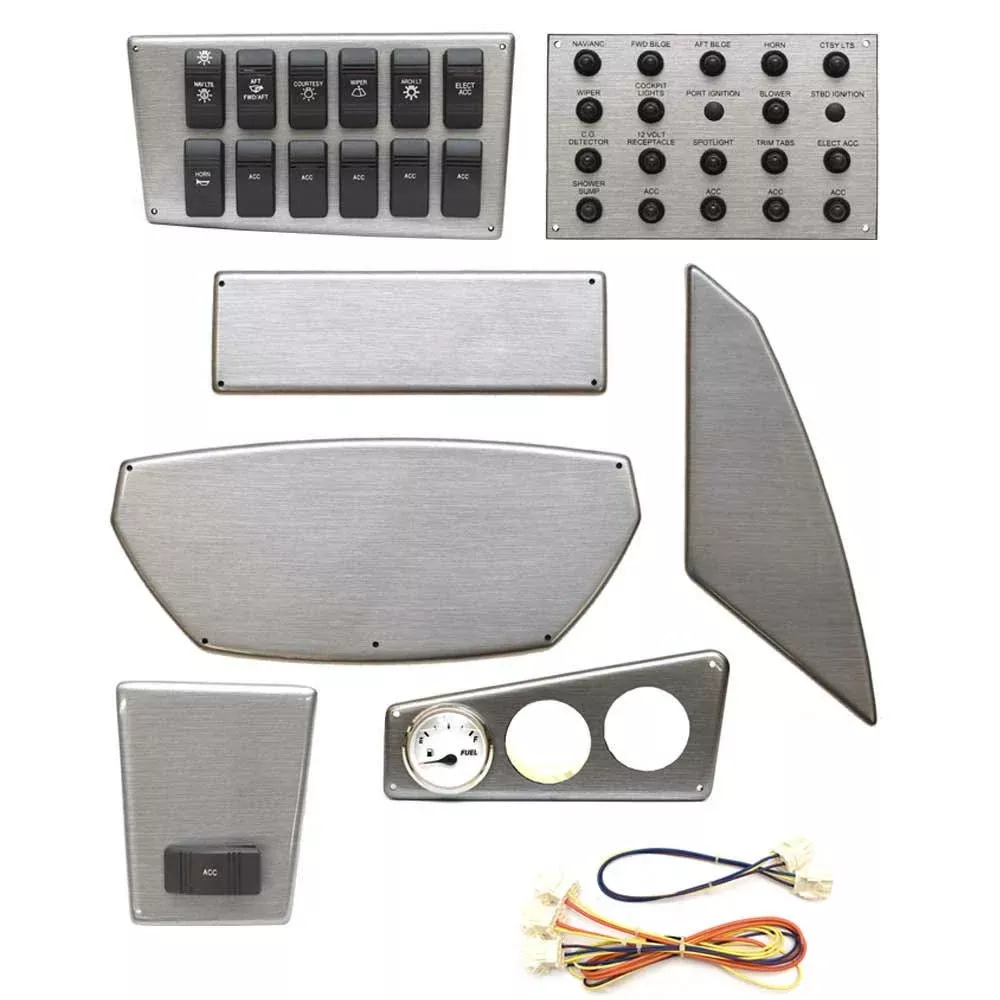

Boat part number 1101003 is a new OEM dash switch panel kit for Cabrio Diesel model Larson Boats, part number 2262-1208 .These dash switch panels are constructed out of glossy gray plastic with a brushed finish. The rocker switch panel measures approximately 9 1/2″ L x 5″ W overall. It mounts via (4) 1/8″ Dia. mounting holes. This panel features the following:
- (1) NAV LTS. | ON/OFF/ON Illuminated Rocker Switch
- (1) AFT FWD/AFT | ON/OFF/ON Illuminated Rocker Switch
- (1) COURTESY | ON/OFF Illuminated Rocker Switch
- (1) WIPER | ON/OFF Illuminated Rocker Switch
- (1) ARCH LT | ON/OFF Illuminated Rocker Switch
- (1) ELECT ACC | ON/OFF Illuminated Rocker Switch
- (1) HORN | Momentary ON/OFF
- (5) ACC | ON/OFF Illuminated Rocker Switch
The breaker panel measures approximately 8″ L x 5″ W overall. It mounts via (4) 1/8″ Dia. mounting holes.This panel features the following push-to-reset breakers with boot covers:
- (1) NAV / ANC | 7 Amp
- (1) FWD BILGE | 5 Amp
- (1) AFT BILGE | 5 Amp
- (1) HORN | 5 Amp
- (1) CTSY LTS | 5 Amp
- (1) WIPER | 3 Amp
- (1) COCKPIT LIGHTS | 7 Amp
- (1) PORT IGNITION | Blank
- (1) BLOWER | 7 Amp
- (1) STBD IGNITION | Blank
- (1) C.O. DETECTOR | 3 Amp
- (1) 12V RECEPTACLE | 10 Amp
- (1) SPOTLIGHT | 10 Amp
- (1) TRIM TABS | 20 Amp
- (1) ELECT ACC | 10 Amp
- (1) SHOWER SUMP | 10 Amp
- (4) ACC | 10 Amp
The gauge panel measures approximately 8 1/2″ L x 3 3/4″ W overall. It mounts via (4) 1/8″ Dia. mounting holes.This panel features the following:
- (1) Faria Fuel Gauge | PN:GBC089A | 33-240 Ohm | Domed lens, silver colored bezel, white face, black lettering, accents and needle
- (2) 2″ Dia. Cutouts
The single switch panel measures approximately 5″ L x 4″ W overall. It features (1) ACC ON/OFF illuminated rocker switch.Also includes (3) blank panels with the following approximate measurements:
- (1) 14″ L x 6″ W
- (1) 13″ L x 4″ W
- (1) 10 1/4″ L x 3 1/4″ W
Specifications:
- Boat Manufacturer: Larson Boats
- Model: Cabrio Diesel
- Part Number: 2262-1208
- Material: Plastic
- Color: Gray
- Finish: Glossy
