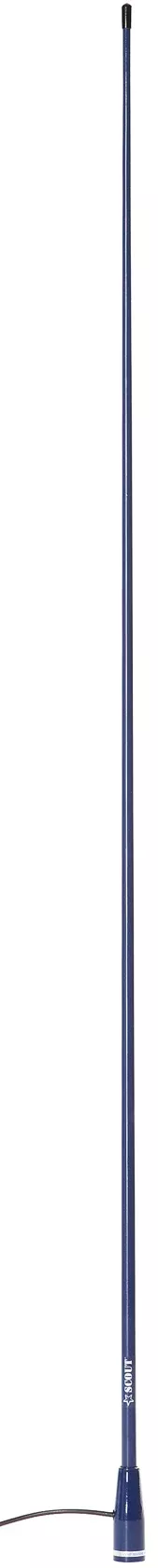

The classic of VHF marine communication is now available in the new Blue Line colouring, specifically designed for the aesthetics of the most modern boats. The KS-22 Blue Line is built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique.
The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
Technical specifications:
| Frequency | 156-162 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | <1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Fiberglass |
| Coaxial cable | 5 m (16,4′) RG 58 CU MIL |
| Mounting | 1″ x 14 thread |
| Length | 1,5 m (5′) |
| Weight | 0,39 kilo |
| Code | PF AN NVHF00003 |
Content:
| 1 x Antenna |
| 1 x PL-259 (RG-58) male connector twist-on |
