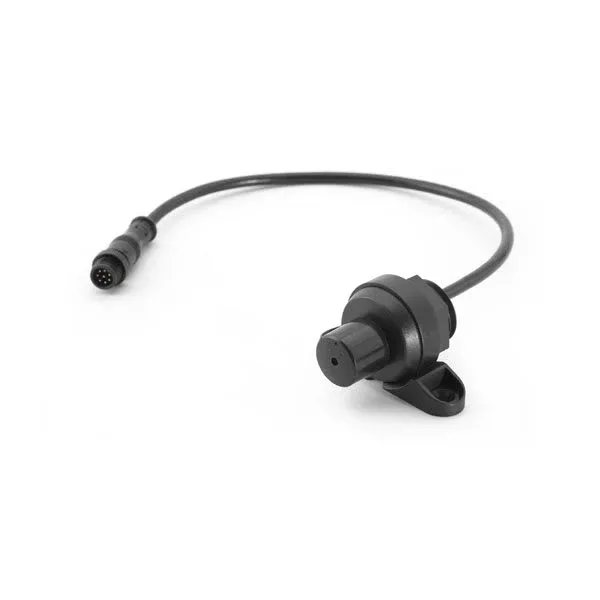

JL Audio MLC-RW Marine Lighting Controller
The marine lighting controller is an advanced controller designed for managing RGB LED lighting circuits. Outfitted with PWM technology and high-capacity circuitry, the marine lighting controller produces up to 30 amps (400 W) of continuous output to power modern, multi-LED networks. All LED functions are easily controlled with the included rotary encoder or using your handheld device via built-in Wi-Fi® connection.
Compatible devices
- M3-770ETXv3 — RGB LED variants only.
- M6-770ETXv3 — RGB LED variants only.
- M6-880ETXv3 — RGB LED variants only.
- M3 VeX — RGB LED variants only.
- M6 VeX — RGB LED variants only.
- M3 de 10 pulgadas / M3 10-inch — RGB LED variants only.
Compatible products and installation
- RGB LED tower speakers: M3-770ETXv3, M6-770ETXv3 and M6-880ETXv3.
- RGB LED compact enclosures: M3 VeX and M6 VeX.
- LED connection: common positive with red, green and blue negative channels.
- Load: maximum 30 A continuous total. Add the current draw of all connected LED circuits.
- Power: 10–17.6 VDC. Keep the LED supply for the speakers above within 10–14.4 VDC.
- Rotary control: fits panels up to 16 mm thick.
Technical specifications
| Operating voltage | 10-17.6 VDC |
|---|---|
| Operating temperature range | –4º f to +167º f (–20º c to +75º c) |
| Wi-Fi band compatibility | B, G, N |
| Output capacity | 30 A (continuous) |
| Auto protection modes | Over-current, Short-circuit |
| Monitoring modes | Voltage, temperature |
