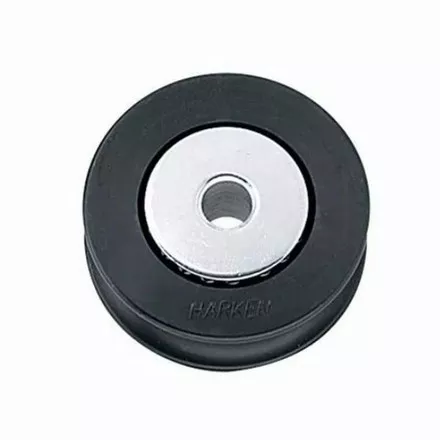

Harken 57mm High-Load Sheave with Aluminium Sheave
High-load sheaves are offered as replacement parts or for use in special applications.
Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
| Part Number | Sheave Diameter | Width | Weight | Max. Line Diameter | Max. Working Load | Breaking Load | Max. Wire Diameter | Centre Pin Diameter |
|---|---|---|---|---|---|---|---|---|
| HKN-727 | 57mm | 22mm | 113g | 12mm | 2245kg | 4491kg | 8mm | 10mm |
