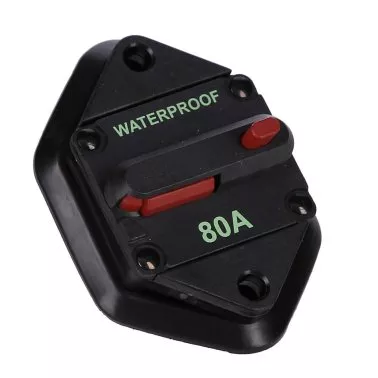

Panel-Mounting Circuit Breaker 80A
This circuit breaker is essential for protecting your windlass or high-power electrical devices from potential overvoltages.
- Current: 80A
- Maximum Voltage: 42V
- Body Material: Bakelite
- Dimensions: Height 74mm x Width 48mm
- Ingress Protection: IP67
- Terminal (+) and (-): ø6.2mm for eye terminals ø8/10mm
- Screws, Nuts, Washers: Chrome-plated brass
- Screw Length: 12mm
- Mounting Holes: ø6mm x Depth 8mm
- Cutout: 48 x 39mm
- Connection: Position the circuit breaker close to the battery
- Brand: Euromarine
VDM – Reya SKU: 662057
EAN CODE: 3425996620570
