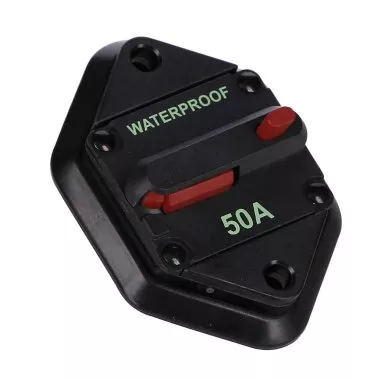

Panel-Mounting Circuit Breaker 50A
The Panel-Mounting Circuit Breaker is a crucial component designed to protect your windlass or high power electrical devices from potential surges.
- Current Rating: 50A
- Maximum Voltage: 42V
- Body Material: Bakelite
- Dimensions: Height 74mm x Width 48mm
- Waterproof Rating: IP67
- Terminals (+) and (-): Ø6.2mm for eye lugs Ø8/10mm
- Fasteners: Chromed brass screws, nuts, and washers
- Screw Length: 12mm
- Fixation Holes: Ø6mm x Depth 8mm
- Cut-out Size: 48 x 39mm
- Installation Tip: Position the circuit breaker close to the battery
Brand: Euromarine
VDM – Reya SKU: 662056
EAN CODE: 3425996620563
