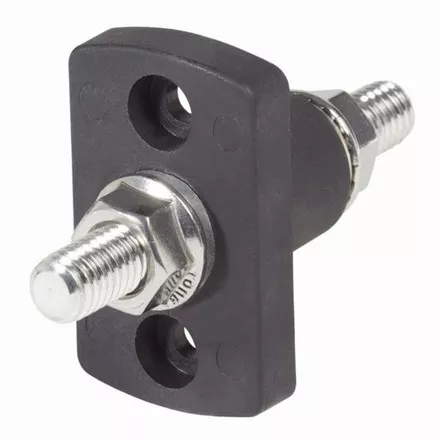

Blue Sea Terminal Feed Through Connector – 3/8″-16 Studs
Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
| Part Number | Colour | Amperage | Maximum Voltage | Stud Size | Base Material | Recommended Torque | Stud Material | Weight |
|---|---|---|---|---|---|---|---|---|
| BSS-2203 | Black | 250A | 48V DC | 3/8″-16 | Reinforced Thermoplastic | 100 in-lb (11.3 N·m) | Tin-Plated Copper Alloy | 0.14kg |
| BSS-2204 | Red | 250A | 48V DC | 3/8″-16 | Reinforced Thermoplastic | 100 in-lb (11.3 N·m) | Tin-Plated Copper Alloy | 0.14kg |
