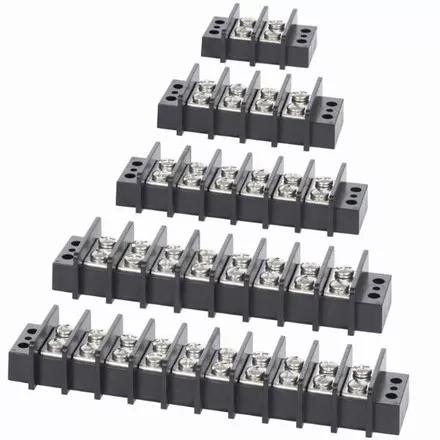

Blue Sea Terminal Block 65A
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Part Number | Circuit | Length | Max Voltage | Base Material | Bus Material | Mounting Screw | Screw Material | Screw Size | Screw Terminal Torque | Terminal Screws | Wire Terminal Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BSS-2602 | 2 Circuit | 2.51in (63.75 mm) | 600V AC/DC | UL 94 V0, PC | Nickel-Plated Brass | 10 [M5] | Stainless Steel | 10-32 | 17.5 in-lb (1.98 Nm) | M5 | 10 [M5] | 0.07kg |
| BSS-2604 | 4 Circuit | 3.89in (98.81 mm) | 600V AC/DC | UL 94 V0, PC | Nickel-Plated Brass | 10 [M5] | Stainless Steel | 10-32 | 17.5 in-lb (1.98 Nm) | M5 | 10 [M5] |
0.12kg |
| BSS-2606 | 6 Circuit | 5.26in (133.6 mm) | 600V AC/DC | UL 94 V0, PC | Nickel-Plated Brass | 10 [M5] | Stainless Steel | 10-32 | 17.5 in-lb (1.98 Nm) | M5 | 10 [M5] | 0.15kg |
| BSS-2608 | 8 Circuit | 6.63in (168.4 mm) | 600V AC/DC | UL 94 V0, PC | Nickel-Plated Brass | 10 [M5] | Stainless Steel | 10-32 | 17.5 in-lb (1.98 Nm) | M5 | 10 [M5] | 0.2kg |
| BSS-2610 | 10 Circuit | 8.01in (203.45 mm) | 600V AC/DC | UL 94 V0, PC | Nickel-Plated Brass | 10 [M5] | Stainless Steel | 10-32 | 17.5 in-lb (1.98 Nm) | M5 | 10 [M5] | 0.24kg |
