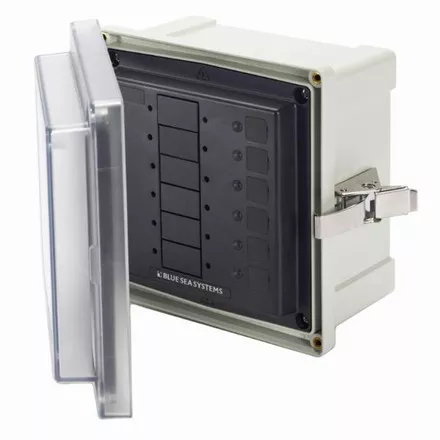

Blue Sea SMS Surface Mount System Panel Enclosure – 6 Circuit Blank
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
| Part Number | Min Operating Temperature | Max Operating Temperature | Cover Screws and Hardware | Enclosure Size | Exterior Overall Dimensions | Mounting Hardware | Weight |
|---|---|---|---|---|---|---|---|
| BSS-3113 | -40° C | 85° C | 10-32 Stainless Steel | 6.0″ x 6.0″ x 4.0″ (152mm x 152mm x 102mm) |
7.6″ x 7.4″ x 4.7″ (192mm x 188mm x 120mm) |
1/4″ Diameter, 12 (6 mm) | 3.18kg |
