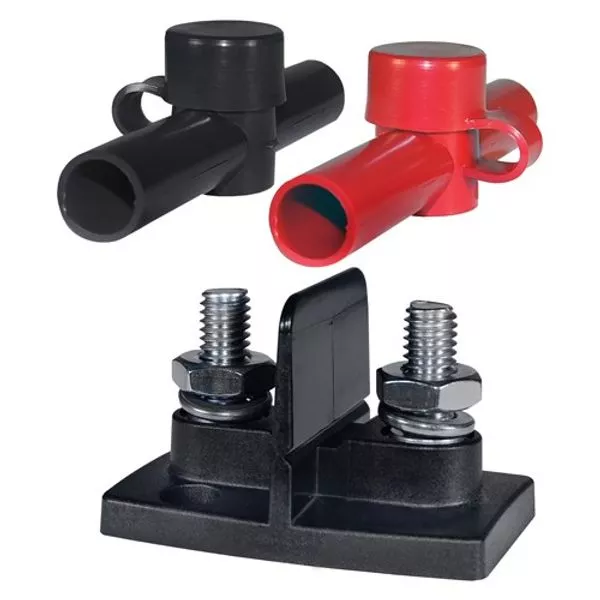

DUAL POWERPOST CABLE CONNECTORS
Provides a termination point for extending the length of outboard harnesses or other conductors. Includes insulators.
8-22016 / 8-22017 are designed for connecting high amp conductors
8-22018 is designed for outboard engine installation when factory cables need to be extended
Specifications:
Continuous Rating: Not rated – amperage flows between terminals stacked on post and is determined by wire and terminals used.
Max. Voltage Operating: 48 Volts DC
Mounting Holes: Accepts 10 (M5) screws
| Part No. | Stud Height A mm | Stud Height B mm |
| 8-22016 | 38.1 | 38.1 |
| 8-22017 | 41.3 | 41.3 |
| 8-22018 | 38.1 | 41.3 |
