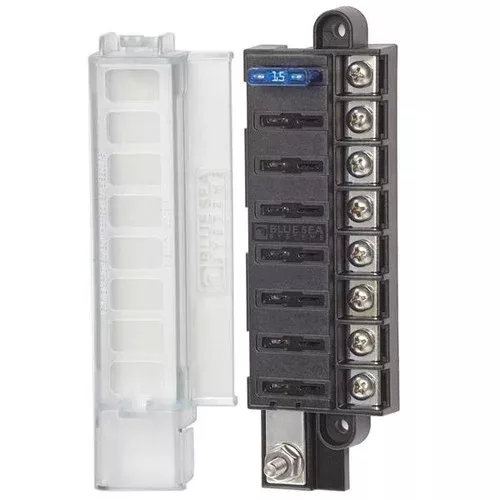

Blue Sea Compact8 Circuit Fuse Block

Blue Sea Systems ST Blade Compact 8 Circuit Fuse BlockBlue Sea Systems’ Compact Fuse Blocks provide surface mount circuit protection for ATO/ATC fuses in a compact footprint. Includes a cover and eight write-on circuit labels. The insulating cover meets ABYC/USCG insulation requirements.

• Ignition protected when cover is secure – meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Single side design allows wire entry from one side to minimize footprint
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes 8 write-on circuit labels
• Fuses sold separately

Specifications:

• Circuits: 8
• Maximum Amperage: 100A per block | 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: 8 Screw
• Terminal Stud Torque: 24 in-lb
• Screw Terminal Torque: 15 in-lb
• Screw Terminal Type: 8-32 Screws with captive star lock washer
• Terminal Stud Size: 10-32
• Weight: 0.40lb
