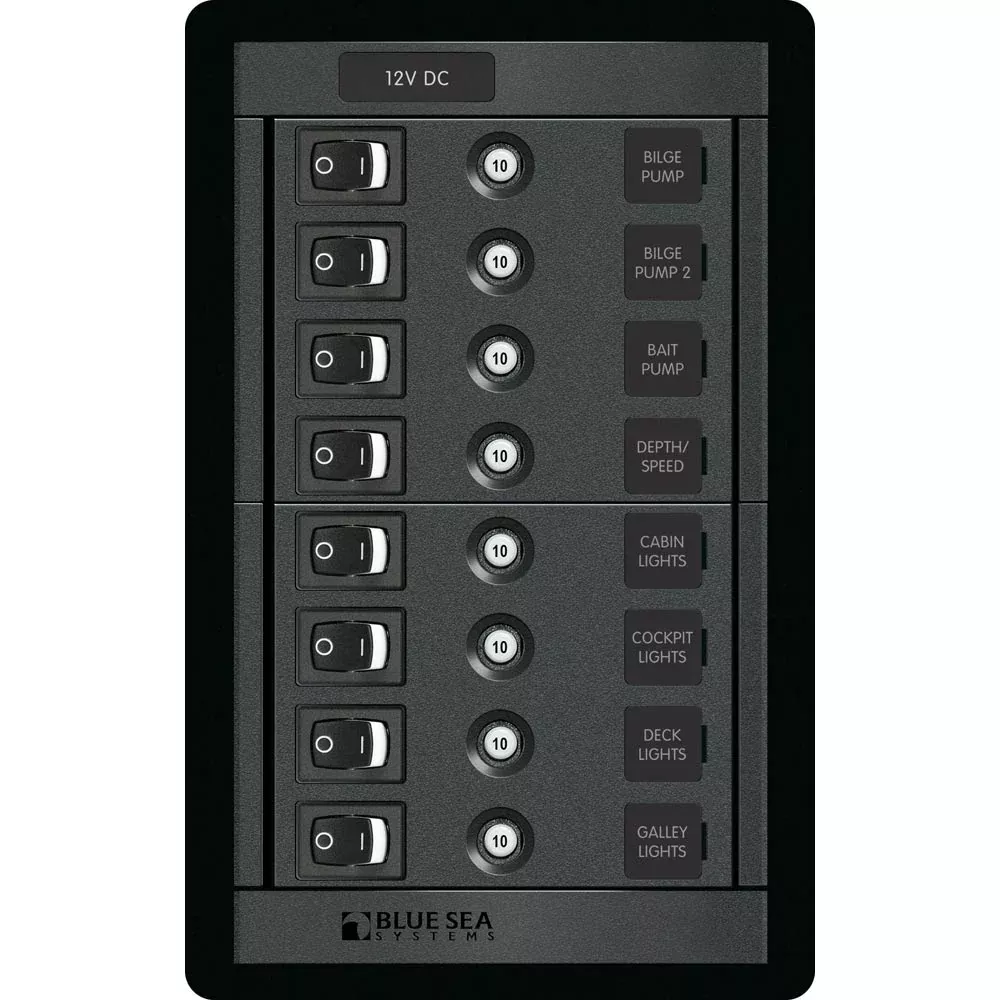

Blue Sea 1457 8 Position Switch CLB Vertical

8 Position Switch CLB Vertical

Features:

• Available with voltmeters and ammeters
• Panels with meters include a toggle switch to monitor voltage on up to three battery banks
• Includes 4205-Square Format Label Set

Specifications:

• Positions:8
• Nominal Voltage:12V DC
• Maximum Amperage*:80A
• Height:7.75″ (196.85mm)
• Width:4.88″ (123.95mm)
• Depth:3.50″ (88.9mm)
• Weight:1.69lb (0.77kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) – 7480 – Rocker Switch SPST – ON-OFF
(8) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 6″H x 7″W x 12″L WT: 1.6 lbs
• UPC: 632085014575

Quick Guide (pdf)
Owner’s Manual (pdf)

SKU:BLU-1457
