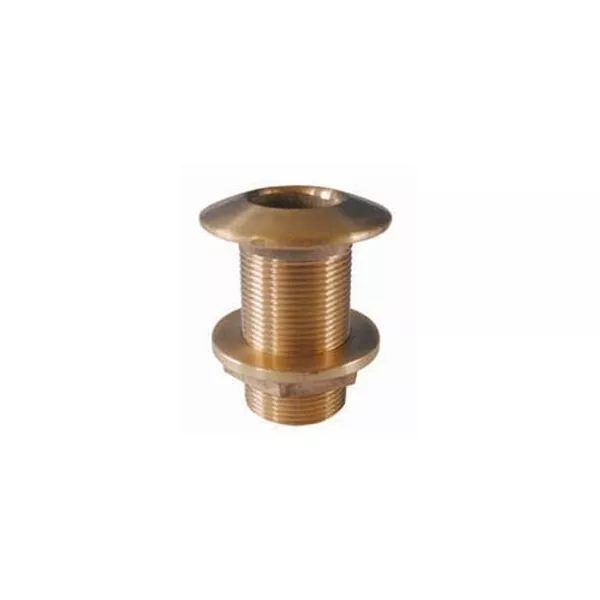

AG Skin Fitting Bronze 2-1/2″ BSP

Original price was: $58.60.Current price is: $35.04.

Sale!
SKU: 2-70107 Category:
Share

Guidi have made a range of skin fittings in Bronze that can either be used on their own or with a Bronze scoop into which they fit perfectly. The skin fittings have one external anti-rotation nib in sizes up to 1 ½”. The scoop is held in place by 4 screws.

The removable scoop is a recommendation of ISO 9093 – 1:1994 so seacocks can be cleared easier of obstructions.

Part No G*/BSP SW H D D1 A F
2-70251 1/2″ 26 70 40 40 65 13
2-70252 3/4″ 32 75 47 46 70 19
2-70253 1″ 41 85 57 58 80 25
2-70254 1. 1/4″ 49 91 67 68 85 32
2-70255 1. 1/2″ 56 96 75 76 90 38
2-70256 2″ 69 107 88 90 100 50
2-70257 2. 1/2″ 85 128 108 110 120 63
2-70258 3″ 100 158 122 122 150 76
2-70259 4″ 129 209 150 150 200 100
