4G onBoard Compact Black

Original price was: $822.60.Current price is: $643.43.

Sale!
SKU: PF AN NWIFI25 Category:
Share

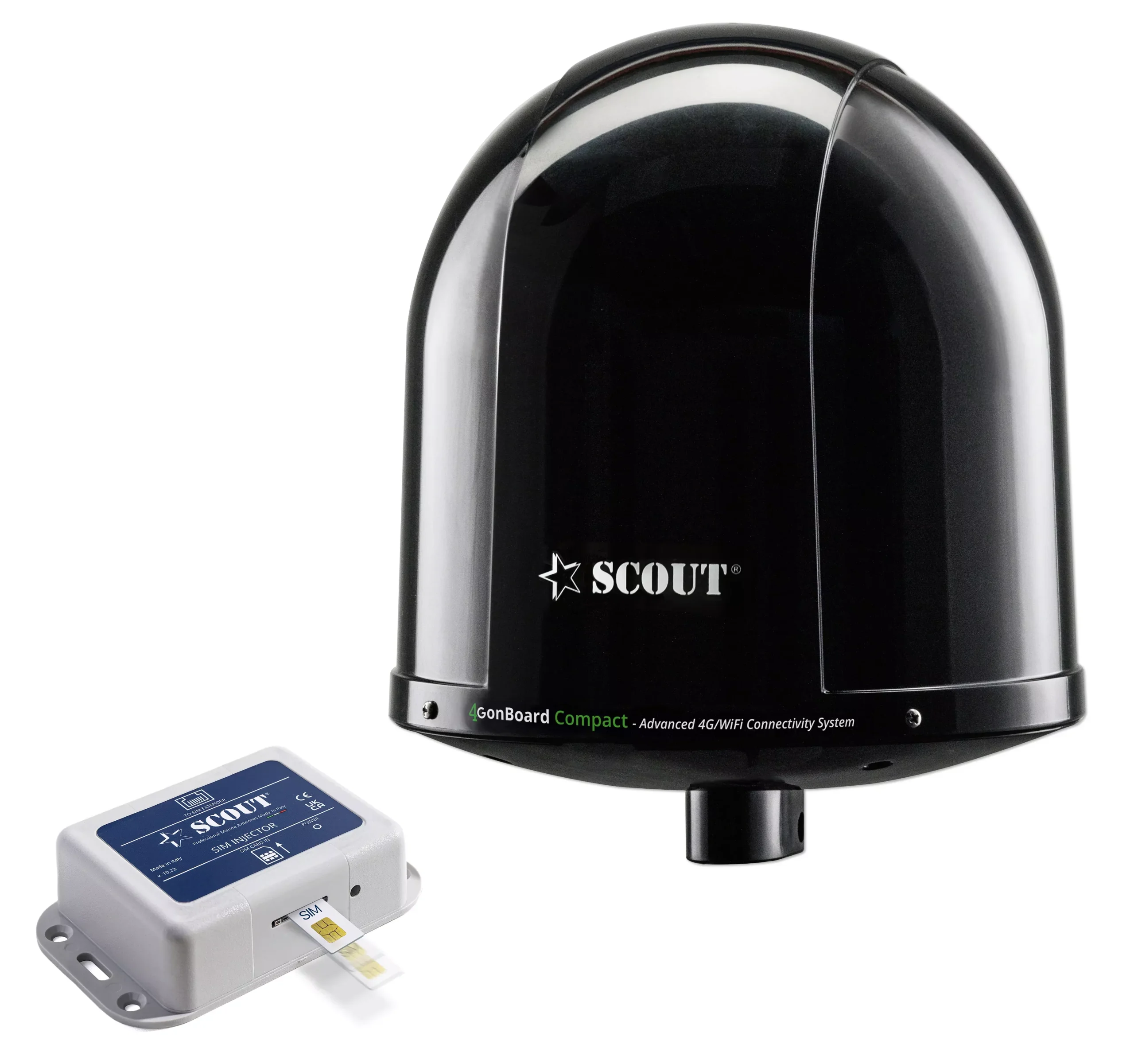

4G onBoard Compact Black marine cellular and Wi-Fi connectivity system.

The 4G onBoard Compact is the all-in-one Internet system for boats that provides 4G connectivity for up to 150 users simultaneously. The compact dome of 25 cm in diameter provides both wireless and wired Internet signal and is remotely activated by the Scout SIM Extender . Thanks to the SIM Extender no matter where the dome is located, the connection is guaranteed by a standard Ethernet cable RJ45 that can reach up to 100 meters without any signal loss. Moreover, the dome provides an additional LAN Ethernet cable to build a wired network inside the boat (suggested for larger boats and aluminium boats).

Key benefits

  • Onboard connectivity: Shares the supported cellular connection through the system’s Wi-Fi and wired network interfaces.
  • Marine installation: The antenna system is designed for installation aboard a vessel and uses the model-specific components supplied in the package.
  • Model-specific configuration: Use the SIM arrangement, router functions and cable set stated for this exact version; white and black or Plus and Compact versions are separate products.

Compatibility and installation

A compatible>

Technical specifications
Item 4G onBoard Compact Black (for Europe, The Middle East, Africa, Australia, APAC, Brazil, Malaysia)
Code PF AN NWIFI25
Item 4G onBoard Compact Black (for USA, Canada)
Code PF AN NWIFI34
Cellular network 4G Cat 6 with 3G fallback
Wi-Fi clients Up to 150
Maximum cellular speed Up to 330 Mbps
Dome diameter 25 cm
Cellular antennas 2 × 4G antennas with MIMO
SIM access Scout SIM Extender over RJ45
SIM Extender cable Standard Ethernet, up to 100 m
Wireless network 2.4 GHz Wi-Fi
Supply 12 V DC
